HOLT IC?航空電子設備 MIL-STD-1553 耦合變壓器

發布時間：2021-03-25 17:02:51 瀏覽：1106

耦合變壓器既是無線電線路中常常用來極間耦合的變壓器。比如，無線電的中間過渡期、輸入變壓器和輸出變壓器都歸屬于這一類。耦合變壓器的功能模塊多種多樣，也可用作構建阻抗匹配等。MIL-STD-1553使用于HOLT IC耦合變壓器。與HOLT IC隔離變壓器相互配合使用時，其比值應是1：1.4。

基本特征

遵循MIL-STD-1553A/B

共模抑制超過45dB

阻抗試驗頻率75kHz~1MHz

不超過20％的下垂

過沖和振鈴正負1V(最大)

脈沖寬度2微秒

相對濕度敏感性(MSL)3

應用領域

MIL-STD-1553接口

智能化彈藥

店鋪管理

傳感器接口

儀器設備和器材

深圳市立維創展科技有限公司，持續提供HOLT IC預定渠道，部分型號備有現貨庫存，歡迎咨詢。

詳情了解霍爾IC請點擊：http : //m.axhd19.com/public/brand/55.html

或聯系我們的銷售工程師： 0755- 83642657 QQ： 2295048674

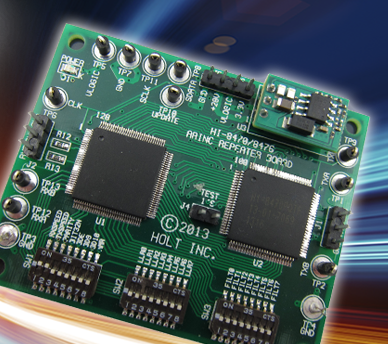

HOLT IC.png

Part	Package Description	Single or Dual Core	Transformer Ratio
PM-DB2764	Surface Mount	Stacked Dual Core	Single Ratio, 1:1.41 per channel
PM-DB27432	Surface Mount	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB2702	Through hole	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB2705	Through hole	Single Core	Single Ratio, 1:1.41
PM-DB2705EX	Through hole	Single Core	Single Ratio, 1:1.41
PM-DB2707	Through hole	Single Core	Single Ratio, 1:1.41
PM-DB2712	Surface Mount	Single Core	Dual Ratio, 1:1.4 or 2.1:1
PM-DB2717	Flat Pack (leads not formed)	Single Core	Dual Ratio, 1:1.41 or 2:1
PM-DB2722	Through hole	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB27403	Through hole	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB27413	Through hole	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB2742	Through hole	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB27423	Through hole	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB2742D	Through hole	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB2742L	Surface Mount	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB2742M	Flat Pack (leads not formed)	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB2742N	Flat Pack (leads not formed)	Single Core	Dual Ratio, 1:1.4 or 2:1
PM-DB2742S	Surface Mount	Dual Core	Dual Ratio, 1:1.4 and 2:1
PM-DB2742T	Flat Pack (leads not formed)	Dual Core	Dual Ratio, 1:1.4 and 2:1
